當前位置：產品與服務>>條碼檢測儀(Barcode Verifiers)>>Axicon >>PC-6000,PC-6005,PC-6010,PC-6015 |
Axicon PC-6000,PC-6005,PC-6010,PC-6015一維條碼檢測儀

產品概述：
AXICON PC-6000手提式檢測儀適用于零售商品條碼
AXICON PC-6000系列提供低成本，ISO級別。適合所有小形條碼打印機,讀取寬度為A 2.8"(72MM)可檢測EAN 8 & 13，自動選擇口徑為
4,5,6,10&20mil(100,125,150,250 & 500micron)
性能參數：
體積：165 x 75(50) x 55 mm, 掃描寬度 - 72mm (包括空白區)
重量：250g
接口：RS232
光斑孔徑：4mil, 5mil, 6mil, 10mil and 20mil
光源：660nm 紅光
系統需要: IBM 或兼容PC (486 或以上), 運行Windows 95 或以上。
其它參數：
以Windows程序?yàn)榛A(chǔ)。
條碼檢測類型: RSS (全部條碼符號), EAN-8, EAN-13 (可包括附加碼), UPC-A, UPC-E (可包括附加碼), ITF/CaseCode, Code 39,Code 39 ASCII, Codabar, Code128, UCC/EAN-128, Italian Pharmacode, HIBC, Pharmacode (Laetus;optional extra)。
| PC-6000 系列條碼檢測儀 |
| 類 型 |
PC-6000: 標準模式 |
| PC-6005: 掃描條碼時通過數據鏈接可獲得被掃條碼的質量及相關質量信息方面的描述。 |
| PC-6010: 可識讀并檢測UCC/EAN-128 碼；可獲得應用標識符的描述和下列各項信息的驗證，校驗可能存在的編碼結構和誤差范圍；CSV 文件存儲。 |
| PC-6015:包括以上全部特性。 |
| 軟件說明 |
以Windows程序?yàn)榛A(chǔ)。
條碼檢測類型: RSS (全部條碼符號), EAN-8, EAN-13 (可包括附加碼), UPC-A, UPC-E (可包括附加碼), ITF/CaseCode, Code 39,Code 39 ASCII, Codabar, Code128, UCC/EAN-128, Italian Pharmacode, HIBC, Pharmacode (Laetus;optional extra)。
|
| 部件說明 |
體積：165 x 75(50) x 55 mm, 掃描寬度 - 72mm (包括空白區) |
| 重量：250g |
| 接口：RS232 |
| 光斑孔徑：4mil, 5mil, 6mil, 10mil and 20mil |
| 光源：660nm 紅光 |
| 系統需要: IBM 或兼容PC (486 或以上), 運行Windows 95 或以上。 |

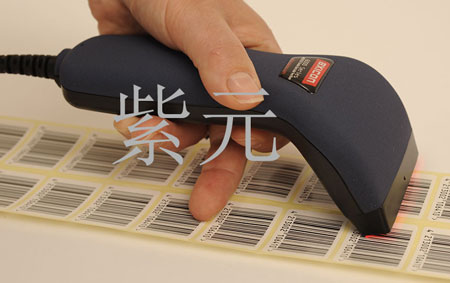

Axicon 6015 Point of sale barcode verifier
Applications
The Axicon 6015 barcode verifier is designed to verify small linear barcodes (with a maximum length, including quiet zones, of 66 mm) typically used on products scanned at the retail point-of-sale, or pharmaceutical products scanned at the point-of-care. These barcodes include EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, HIBC, GS1 DataBar, GS1-128, CIP 39 and Laetus Pharmacode*.
This verifier is perfect for product manufacturers, label printers, printers and packagers, and pre-press studios.
*Laetus Pharmacode verification requires dedicated additional software.
Features & Benefits

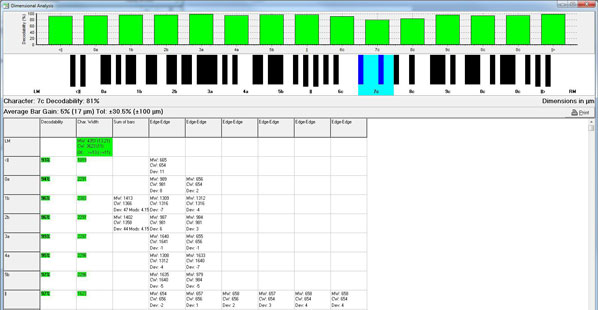

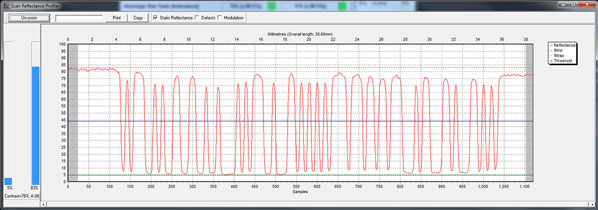

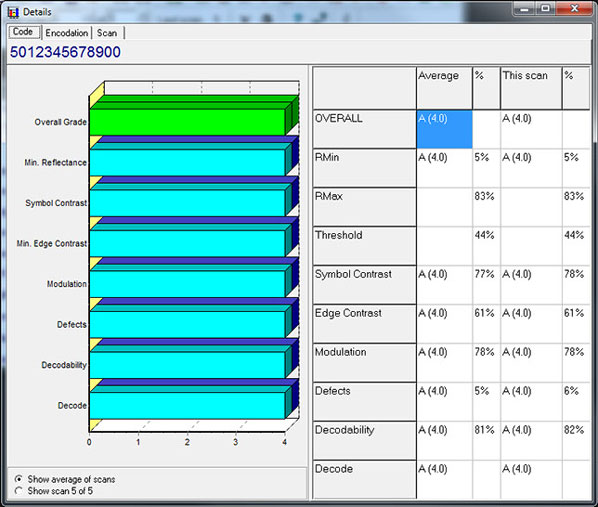

ISO/IEC verification with ANSI option, traditional verification, symbology auto-discrimination, automatic variable aperture, scan saving and loading, static reflectance meter, display of x-dimension and magnification, individual bar and space dimensional analysis. Product look-up option and other software plugins are available to validate data content of codes such as PZN, CIP, ISBN, ISSN.
Hardware
A CCD imager-based linear barcode verifier, designed to be ISO/IEC compliant. Aperture automatically switchable between aperture reference numbers 03, 05, 06, 10 and 20. Scan width 66mm (including quiet zones). Wavelength of light 660 nm. Weight: 230g. Size: 165 x 75 x 55 mm.
Connectivity
USB or RS232 (optional)
System Requirements
Designed to function with any PC running any currently supported version of Microsoft Windows, or the Axicon PV-1000 portable display unit.
The verifier is supplied as the verifier read-head, its data cable, a CD with the Axicon verifier software (in several languages), a quick start guide, a calibration card and compliance certificates in a protective carry case.
備注： 以上產品資料可能包含技術上不準確的地方，請聯系我們。Geeren是紫元公司的注冊商標，所有其它商標歸屬各自所有者。 |
